500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm

500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm

500Kg/H Flat Die Wood Pellet Machine,Biomass Pellet Production Line 6mm,8Mm Biomass Pellet Production Line

Biomass Pellet Production Line 6mm

8Mm Biomass Pellet Production Line

Place of Origin:

Henan

اسم العلامة التجارية:

Zhongdebao

إصدار الشهادات:

CE BV

Model Number:

EWP420

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
اسم الإنتاج:
خط إنتاج الكتلة الحيوية / الخشب بيليه
لون:
حسب طلب العملاء
مواد خام:
العشب ، قشر الأرز ، نشارة الخشب ، الكتلة الحيوية ، القش
ضمان:
سنة واحدة
ميزة:
أداء عالي
قطر الحبيبات (مم):
6-12
شروط الدفع والشحن
Minimum Order Quantity
1 set
الأسعار
negotiable
Packaging Details
Standard export wooden box packaging
Delivery Time
5-8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
القدرة على العرض
500 + مجموعات + شهريا
وصف المنتج

500 Kg Per Hour Flat Die Wood Pellet Production Line With 6/8 Mm Die Plate

 Product Description

The wood pellet machine production line is developed by our company to establish an industrialized production line for biomass production. The complete set of equipment for wood pellet machine mainly includes: pulverizer, dryer, granulator, conveyor, cooling machine, packaging machine. The production of wood pellets consists of raw materials, crushing, drying, granulation, cooling, and finished product packaging. Every step of each equipment has strict operating specifications and quality requirements to ensure product quality.



Biomass/Wood Pellet Production Line is an integrated pelletizing system for the production of biomass pellets from various kinds of raw materials, such as wood chips, sawdust, rice husk, etc. It is characterized by its high automation and efficiency with a variety of automatic packing machine, a feeder power of 1.5-2.2kw, a main motor power of 90-160kw and a final pellet bulk density of500kg/m3. This biomass pelletizing line is suitable for a wide range of materials and provides high-quality pellets that can be used in various ways. It is easy to operate and maintain, and it also has a low energy consumption. This Biomass/Wood Pellet Production Line is an ideal solution for those looking to produce high-quality biomass pellets.

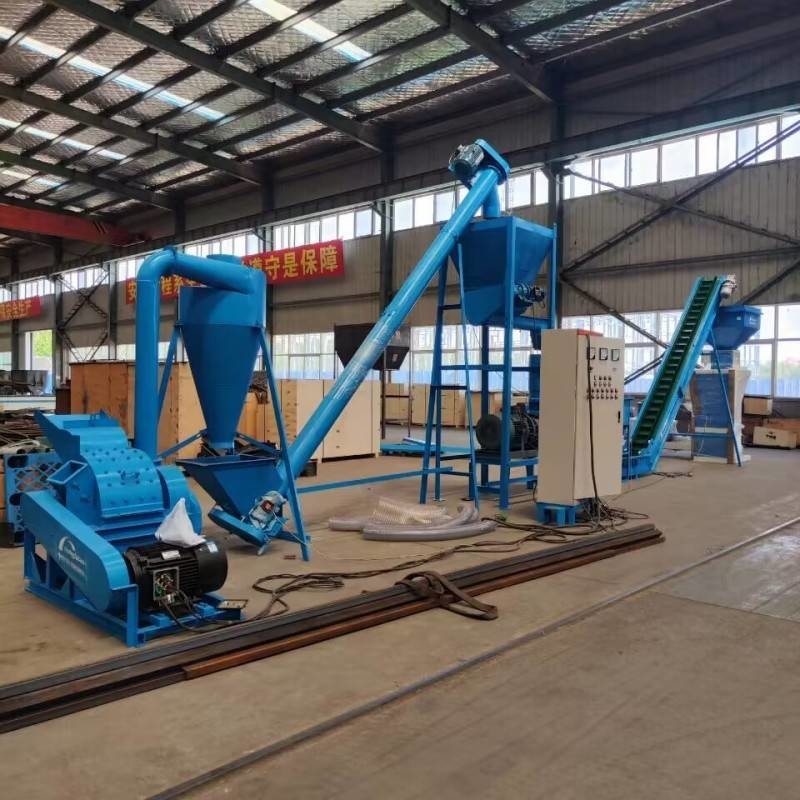

500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm 0

The whole biomass fuel pellet production line includes: log receiving and slicing system - crushing system - drying system - pelletizing system - cooling system - screening system - automatic packaging system

Technical Parameters:

No. Item Model Qty. Power(kw)
Wood Crusher syetem 1 Wood Crusher and hammer mill Machine TFS500B 1 11kw
Granulation system 2

Screw Feeder

weight :250 kg

LS220 1 4+0.55
3

Stock Bin

1 m3 weight :250kg

/ 1 /
4 Feeder LS160 1 0.75
5

Pellet Machine

capacity : 400-600kg/h

size : 1630*620*1400mm

Weight : 1100kg

ZLSP420R 1 37
Cooling system 6

Cooling machine

1900*880*1000mm

1050*650*1165mm

LQSF50 1 5.15(0.75+2.2*2)
Conveyor packaging 7 Conveyor 2 QB380 1 2.2
8

Packing Machine

|||||

BZJ50 1 1.26
Electronic control system 9 Electrical Control Cabine / 1 /

Applications

1. The biofuel granulator can process various crop straws such as rice husks, cotton stalks, cottonseed husks, and weeds, and is a good feed machine;:

2. This kind of fuel pelletizing machine can also process wood chips, sawdust, firewood, shavings, wood scraps, bagasse and other waste materials, which can be solidified and formed into pellet fuel;

Output 500kg per hour exported to Chile

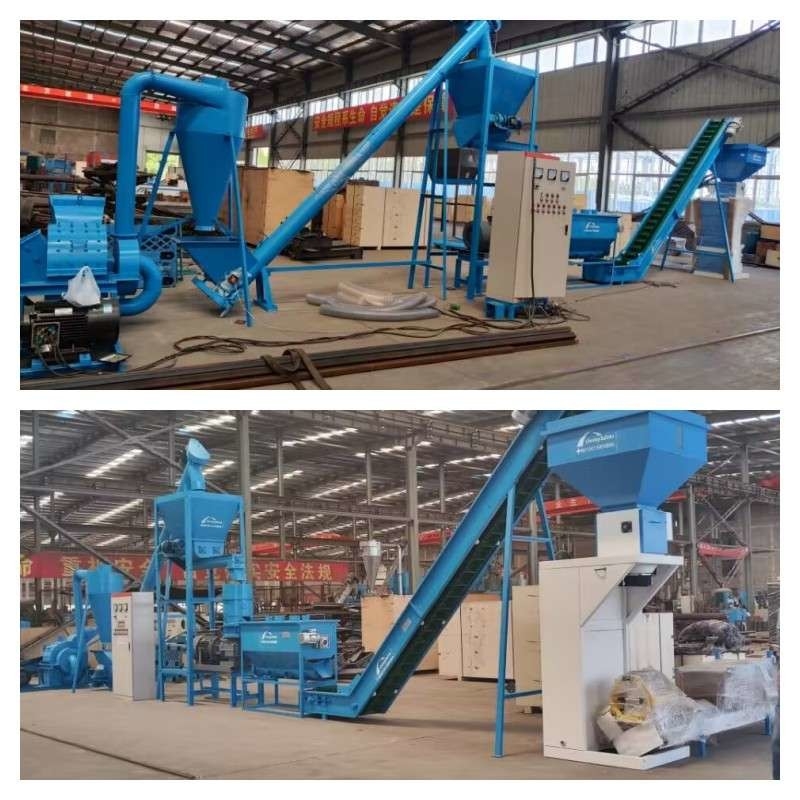

500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm 1

800-1000 kg per hour exported to Poland

500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm 2

Main equipment

500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm 3

Final Different Size Wood Pellet Product:

500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm 4

Our customers

 500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm 5

packing and shipping :

500Kg/H Flat Die Wood Pellet Machine Biomass Pellet Production Line 6mm 8Mm 6
