Commercial Automatic wood pellet production line for fuel sale
Description
The biomass pellet production line is mainly composed of crusher machine, dryer machine, pellet machine, pellet cooling machine, packaging machine and other whole pellet production line equipment. The equipment integrates crushing, drying, granulating, cooling, screening, packaging, and computer-controlled. Adaptable to different types of biomass feedstock.
The raw materials is common raw materials, such as Wood, pine, poplar, fir, branches, bark, sawdust, shavings, etc. and Straw: corn stalk, wheat straw, straw, rice husk, peanut shell, cotton stalk, etc. Waste: building templates, furniture scraps, wooden pallets, municipal waste, medicinal residues, mushroom residues, sludge, etc. In addition to the above common biomass raw materials, our company has specially developed a suitable pellet machine for activated carbon materials and sludge.
Biomass pellet production line is a kind of pellet equipment commonly used in the biomass energy industry. It is a new type of fuel forming machine that crushes biomass raw materials such as branches and straw into rod-shaped pellets to replace coal. the new type fuel to protect the environment. it is a industries worth investing in.
The pellets be produced by our machine has good smoothness, beautiful appearance, few cracks, high density, uniform length, etc., and various technical indicators have reached the EU A1 standard. with the winter coming, the pellets will in hot sale. And The equipment is used in biomass fuel processing plants, power plants, wood processing plants, fertilizer plants, chemical plants and other scenarios. It is an ideal compression and densification equipment with small investment, quick results, and no risk.
About the Auxiliary facilities, it include warehouses and supporting facilities and equipment; in terms of warehousing and logistics, the main consideration is the size of the warehouse area and the layout of the warehouse; the configuration of auxiliary facilities mainly considers the degree of automation of the equipment and whether it is easy to operate; Our engineers will help customers install and operation the machine when the customer receive the machine.
All the machine will be installed and commissioned before packing and shipping. Assure all the machines are perfect when customer receive the machine.
Specification
| Name | Power | Function |
| Crusher | 22kw | Crush the materials into chips (under 6mm) |
| Dryer | 3kw | Dry the materials under 20% moisture |
| Screw Conveyor | 4.55kw | Convey the raw materials into pellet machine |
| Pellet machine | 37kw | Make the pellet |
| Cooling machine | 7.15kw | Cooling and screening the pellet |
| Belt conveyor | 1.26kw | Convey the pellets into package machine |
| Packing machine | 4kw | Package the pellets into bags |
Advantage
1, Full automatic pellet production line, which save the labor costs
2, The pellet machine motor is directly connected to the gearbox to increase the conversion rate of kinetic energy and improve production efficiency. The moulds materials is 42 CrMo. the long service life. The mold has uniform hardness, does not break, and is super wear-resistant.
The pressure roller adopts super wear-resistant alloy welding process, which replaces the previous surface carburizing treatment. The service life is super long, and at the same time, the protection of the mold is realized. quality be approved and praised.
3. Three years warranty, 24 house online service.
4. The price is competitive in an equal quality.
Raw Materials
Wood log, chips, sawdust, straw, rice husk, wast agriculture, various biomass materials.
Finished Pellets
Application

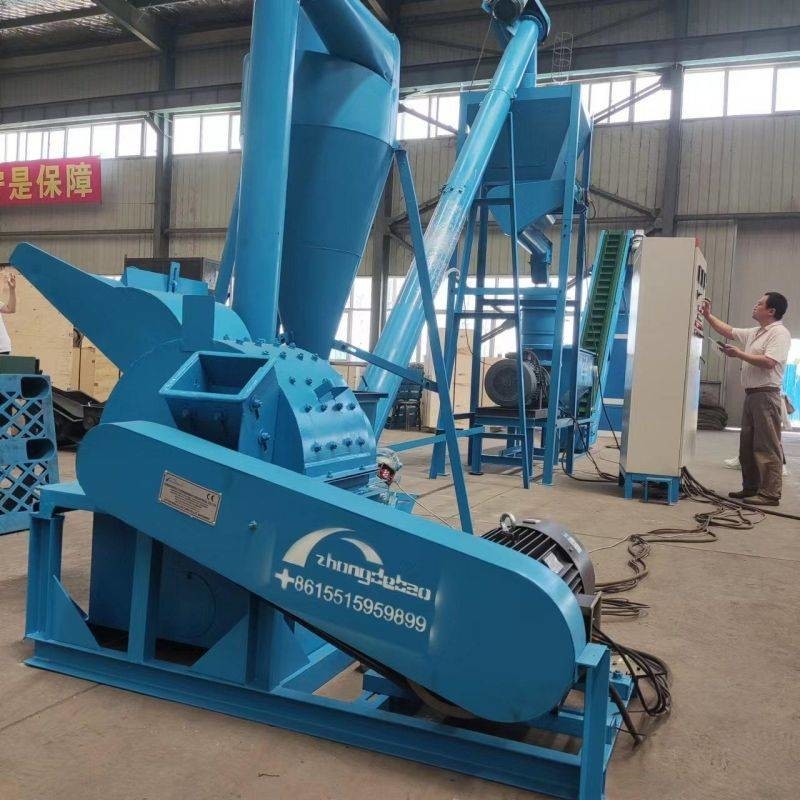

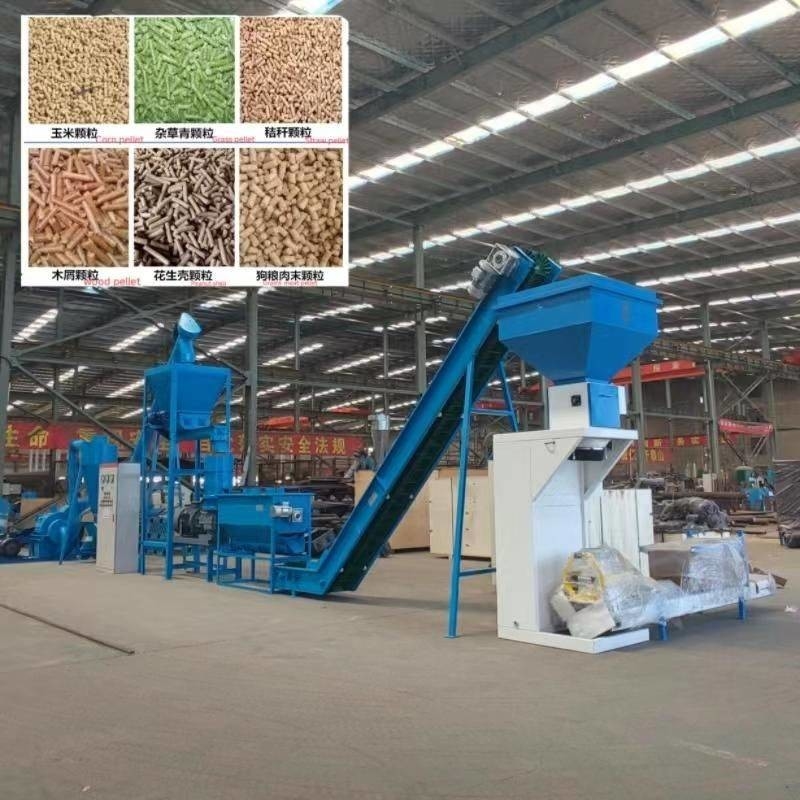

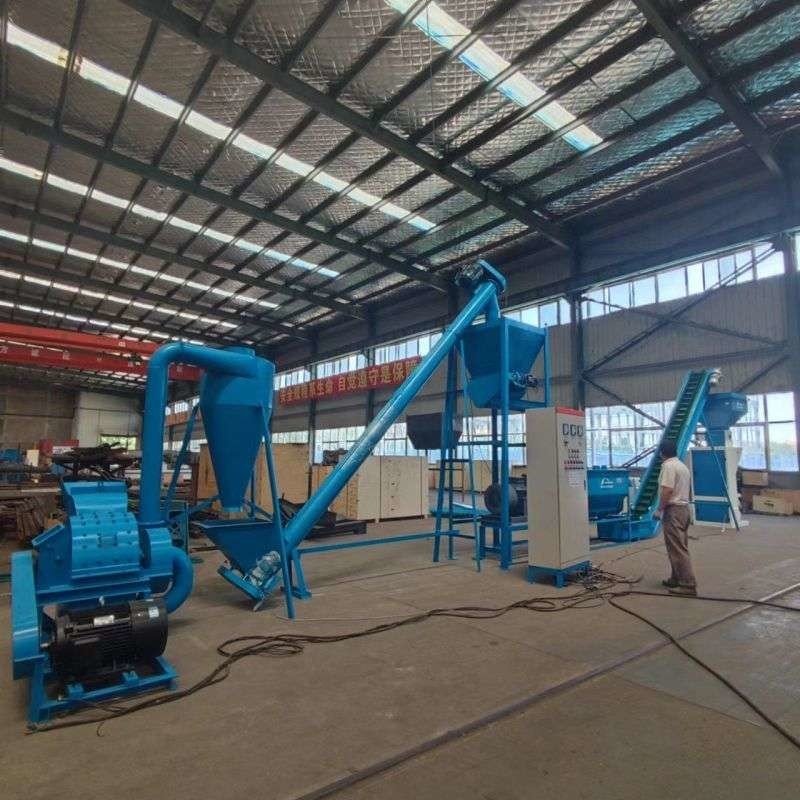

Factory Pictures
