Energy Saving Wood Pellet Production Line 6-12mm Wood Pellet Extruder Machine

Energy Saving Wood Pellet Production Line 6-12mm Wood Pellet Extruder Machine

Energy Saving Wood Pellet Production Line,Wood Pellet Production Line 6mm,12mm Wood Pellet Extruder Machine

Wood Pellet Production Line 6mm

12mm Wood Pellet Extruder Machine

مكان المنشأ:

الصين

اسم العلامة التجارية:

Zhongdebao

إصدار الشهادات:

CE BV

رقم الموديل:

PL-1-10TPH

اتصل بنا
اطلب اقتباس
تفاصيل المنتج
تطبيق:
رقائق ، بسكويت ، وجبة خفيفة ، وجبة خفيفة منفوخة / وجبة خفيفة من الذرة / خط إنتاج الوجبات الخفيفة بال
يتم توفير خدمة ما بعد البيع:
يتوفر المهندسون لخدمة الآلات في الخارج ، والتركيب الميداني ، والتكليف والتدريب ، ومركز الخدمة في الخ
الجهد االكهربى:
380 فولت / 50 هرتز ، 380 فولت ، 50 هرتز ، 380 فولت / 50 هرتز / ثلاث مراحل ، 220 فولت / 50 هرتز / مرح
قوة (ث):
45KW ، 256kw ، 195kw ، 80KW ، 22/30/55/75 / 90kw
ضمان:
سنة واحدة ، سنة واحدة ، 12 شهرًا
وزن:
500 كجم ، 6000 كجم ، 1200 كجم ، 2-10 طن ، 2000
البعد (L * W * H):
30000 * 5000 * 3500 مم ، 3.2 * 1.1 * 2 م ، 21 * 2 * 3 م ، 3.5 × 1.05 × 1.96 م ، حسب السعة
حالة:
جديد
سعة:
1000 كجم / ساعة إلى 10 طن / ساعة
مادة:
سبائك الصلب الكربوني
محرك:
Simens ، محرك صيني أو Simense
منتوج إسم:
خط إنتاج بيليه خشب الكتلة الحيوية
لون:
يمكن تخصيص أي لون أزرق أبيض أخضر
يكتب:
خط إنتاج بيليه الخشب الكتلة الحيوية
مواد خام:
wood chips Eucalyptus pine birch poplar Rice husks, peanut husks, melon seed husks, bamboo shavin
المحرك الرئيسي:
22kw 30kw 37kw 55kw
انتاج |:
300 كجم / ساعة 500 كجم / ساعة 800 كجم / ساعة 1000 كجم / ساعة 1.5 طن / ساعة 1.8-2 طن / ساعة 2.5-3 طن
سنة:
2023
شروط الدفع والشحن
الحد الأدنى لكمية
1
الأسعار
price negotiable
تفاصيل التغليف
حزمة حالة خشبية وتحميلها مباشرة في الحاوية
وقت التسليم
5-8 أيام عمل
شروط الدفع
L / C ، T / T ، ويسترن يونيون
القدرة على العرض
100sets في الشهر
وصف المنتج

Energy-Saving 6-12mm Wood Pellet Production Line with Heavy-Duty Reducer

Directly burning straw can generate a large amount of smoke and carbon monoxide, polluting the air. After being processed into straw particles using a biomass pellet machine, straw becomes an environmentally friendly fuel with high density, high calorific value, smokeless combustion, and no harmful gas emissions. Therefore, biomass particles are clean energy. The price is only half that of coal, and the burnt ash can still be used as fertilizer, which brings all the advantages together.
First, break the waste wood into small pieces, then use a wood crusher to crush it into 3-6mm powder, and then use a conveyor belt to enter the dryer to dry it to about 15% moisture
No adhesive is required. The raw materials for processing the pellet machine need to be crushed into 3-6mm sawdust, with a moisture content controlled within 20%. Moreover, the coarse fibers themselves have a certain degree of adhesion. It can be seen that these sawdust are all small particles with high density and high hardness that are squeezed out by the biomass pellet machine.



The three major advantages of the eighth generation particle machine are:

1. It has a larger output and a particle forming rate of about 99%, which is much higher than ordinary particle machines.

2; Energy saving, heavy-duty integrated hard tooth reducer, low power consumption, high torque, and high performance.

3. Durable, automatic lubricating oil supply device, capable of continuous production 24 hours a day.



The biomass granulator is suitable for a wide range of raw materials. There are mainly two categories: wood branches, miscellaneous wood bark, construction waste wood, furniture factory scraps, etc. 2. It is a type of crop straw, peanut husk, rice husk, etc. that has been pre processed and processed into 8mm 3500-4500 kcal. It has the advantages of small size, combustion resistance, and convenient transportation, and can replace coal as the main fuel for boilers. It can also be used in fields such as domestic stoves, hot water boilers, and industrial boilers.

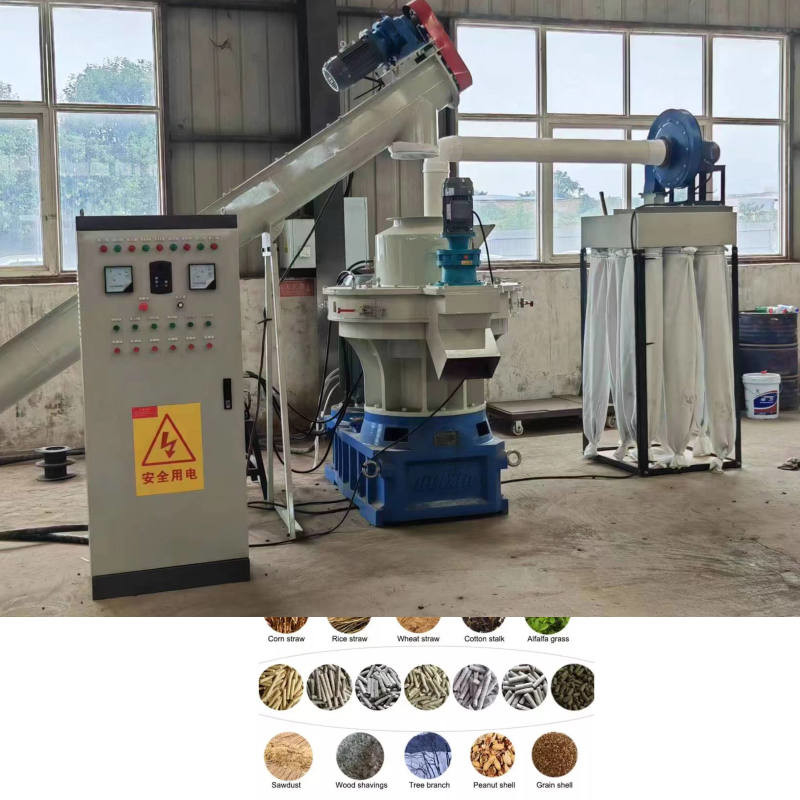

Energy Saving Wood Pellet Production Line 6-12mm Wood Pellet Extruder Machine 0

(Chipping---Grinding---Drying---Pelleting---Cooling&Sifting---Packing process).



On the market, there are two types wood pellet machine,flat die and ring die(horiztonal type and vertical ring die pellet
machine)Wood pellets machine also called wood pellet making machine,pellet press machine, is a biomass equipment which is used to press small size wood into 6/8mm wood pellets. Our wood pellets machine belongs to the 8th Vertical ring die.Double layer, both side can be used, enhanced the lifetime of spare parts and reduce cost.

The main advantages of the vertical ring die pellet machine :

1. Feeding vertically and directly to pelletizing room .
2. Die static , rollers rotating , materials centrifugal , evenly distributed around .
3. Double-layer dies , up and down dual use , high capacity and energy saving .
4. Ring die , vertical structure , conducive to the pelletizing room cooling .
5. Independent output device , ensure formation rate of pellets .
6. Independent lubrication system , bring precise and automatic lubrication to bearings .
7. Feeding system is equipped with inverter which can bring stepless adjustable feeding speed .

Our ring die pellet machine have below models :

Energy Saving Wood Pellet Production Line 6-12mm Wood Pellet Extruder Machine 1



Model
VR450
VR560
VR600
VR600A
VR700A
Power(kw)
55+0.37
90+1.5+0.37
110+2.2+0.37+0.65
132+2.2+0.37+0.65
160+2.2+0.37+0.65
Voltage
380v/220v 50hz 60hz customized
Rotation speed
1450r/min
Pellet size
4-12mm
Pelletize temperature
40-80 ℃
raw material moisture
15-25%
Weight
2.9T
5.6T
6.5T
7T
8T
Size
2160*1000*1850
2300*1250*2000
3100*1300*2100
2200*1200*1750
2460*1400*2000
Ring die inner diameter
450
560
600
600
700
Capacity
0.8-1T/H
1.2-1.5T/H
1.8-2T/H
2-2.5T/H
2.5-3T/H





For the pellet mold/die the diameter generally will be 6mm or 8mm .



The finished sample pellet for your reference :

Energy Saving Wood Pellet Production Line 6-12mm Wood Pellet Extruder Machine 2
