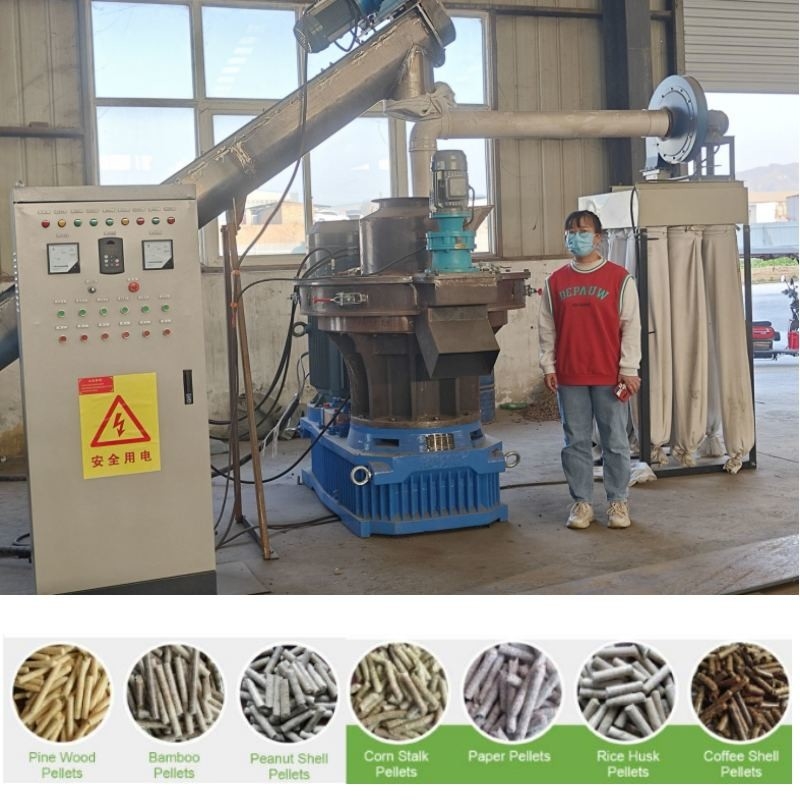

1ton To 10 Tons Biomass Pellet Production Line For Sawdust, Pinewood, Rice Straw
Production Description:
Zhongdebao Industry is a one-stop solution provider of biomass wood pellet machine line solutions from 500kg/hour to 10 tons/hour, or more as customers' requirement. This 1ton To 10 Tons Biomass Pellet Production Line For Sawdust, Pinewood, Rice Straw For Rice Husk, Bagasse, Sorghum Straw was made by Zhongdebao for customers with ranges of investment.
Notice: Not only the small wood pellet line, w can provide you a Complete Biomass Wood Pellet Production Line with customized capacity and raw materials, from 1T/H to 100T/H. The size of pellets can be 6/8/10/12 or others customized size.

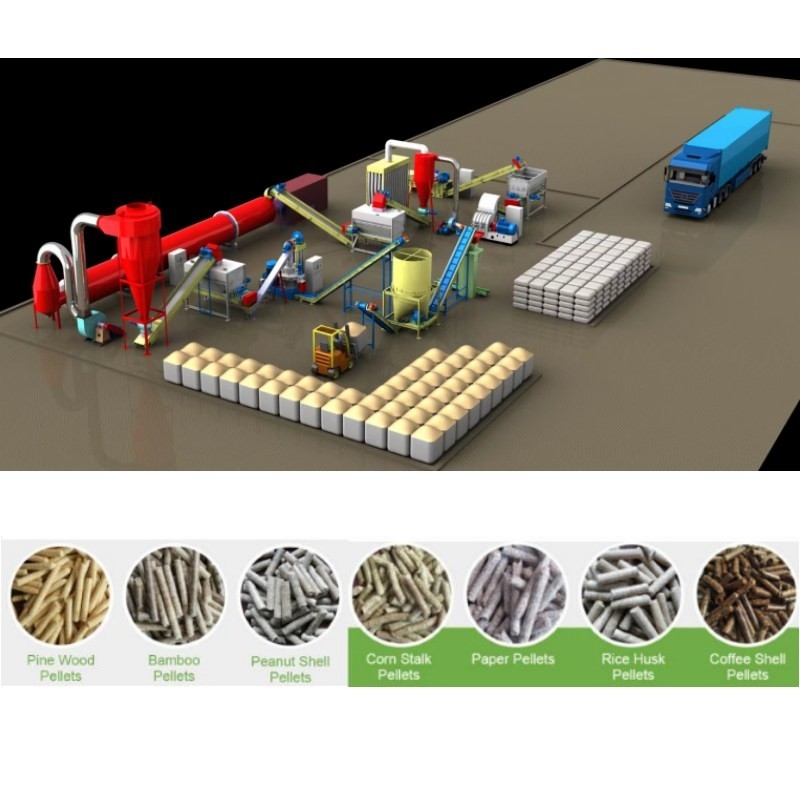

Zhongdebao Industry can provide complete customized wood pellet engineering solutions. Including design planning, raw material processing equipment, pellet manufacturing equipment, automatic packaging equipment, automatic control system, workshop, steel frame, etc.
Zhongdebao Industry is customized according to the customer's site, raw material types, pellet requirements, and we can automate the control of the entire production line, making the operation easier and reducing labor costs.
Specifications:
|
Model
|
VR450
|
VR560
|
VR600
|
VR600A
|
VR700A
|
|
Power(kw)
|
55+0.37
|
90+1.5+0.37
|
110+2.2+0.37+0.65
|
132+2.2+0.37+0.65
|
160+2.2+0.37+0.65
|
|
Voltage
|
380v/220v 50hz 60hz customized
|
||||
|
Rotation speed
|
1450r/min
|
||||
|
Pellet size
|
4-12mm
|
||||
|
Pelletize temperature
|
40-80 ºC
|
||||
|
raw material moisture
|
15-25%
|
||||
|
Weight
|
2.9T
|
5.6T
|
6.5T
|
7T
|
8T
|
|
Size
|
2160*1000*1850
|
2300*1250*2000
|
3100*1300*2100
|
2200*1200*1750
|
2460*1400*2000
|
|
Ring die inner diameter
|
450
|
560
|
600
|
600
|
700
|
|
Capacity
|
0.8-1T/H
|
1.2-1.5T/H
|
1.8-2T/H
|
2-2.5T/H
|
2.5-3T/H
|
Payment term:
30% for down payment, and balance paid before ex factory.
FAQ:
Here Are Some Questions You Might Care About:
▶What Raw Materials Can Be Recycled And Processed Into Wood Pellets By this Pellet Production Line?
•Forestry Waste: such as logs, sawdust, wood chips, branches, leaves, etc.
•Agricultural Waste: such as hay, grass, straw, forage, alfalfa waste, cassava waste, coconut husk, bagasse, rice husk, etc.
•Domestic Waste: such as waste paper, wooden building formwork, etc.
•Palm Industry Waste: palm is an important industry in Indonesia, in which palm kernel shell, palm fiber, palm empty fruit bunches and other palm waste, etc, can be processed into biomass pellets for combustion.
▶Is It a Wise Choice To Invest In a Wood Pellet Production Line in my country?
Yes, If you have a large amount of biomass raw materials or wood waste and has policy support. It will be a good choice to invest in biomass pellet plants.
▶Are You A Manufacturer?
Yes, Zhongdebao Machinery is not only a manufacturer, but also a one-stop solution provider.
▶I Know Little For Wood Pellet Production Line, How Can I Choose Most Suitable Machines?
Just tell us what your raw materials is, your capacity (t/h), the diameter size of the final pellet product, the size and height of your place. We will design the solution that works best for you.
▶Can I Use This Wood Pellet Production Line To Produce Pellet With Different Size And Diameter?
Yes, the diameter of the pellets is controlled by the die holes on the Ring Die of the Wood Pellet Machine. We provide and customize a variety of different specifications of ring dies to meet your needs. The length of the pellets is adjusted by the cutter adjustment handle on the Wood Pellet Machine, and no additional accessories are required.
Application:
